• Tilting range of -15° to +15°
• Suitable for most 60"-100” screens
• Fit mounting patterns up to 1098x807mm
• Maximum VESA pattern: 1000x800mm
• Mounting profile from wall: 130mm
• Maximum weight capacity: 100kg/220lbs
• Open design for easy cable and electrical access
• Suitable for most 60"-100” screens
• Fit mounting patterns up to 1098x807mm
• Maximum VESA pattern: 1000x800mm
• Mounting profile from wall: 130mm
• Maximum weight capacity: 100kg/220lbs
• Open design for easy cable and electrical access

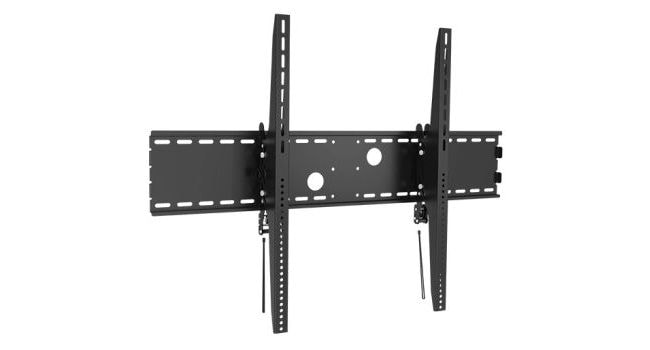

| Mount Type | Tilting Landscape Wall Mount |
| Mounting Pattern | Universal |
| Material | Steel |
| Material Thickness | 2mm |
| Recommended Screen Size | 60"-100" |
| Weight Capacity | 100kg/220lbs |
| Load Tested | 4 times weight capacity approved |
| Compatible VESA Patterns | 200x200, 400x200, 300x300, 400x400, 600x400, 800X400, 800X600, 1000X400, 1000X600, 1000X800 |
| Maximum VESA Pattern | 1000x800 |
| Tilt | -15° to +15° |
| Swivel | 0° |
| Level Adjustment | 0° |
| Rotation | 0° |
| Profile | 130mm |
