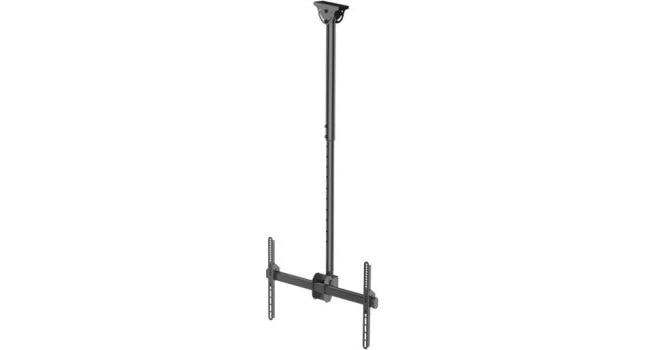

Telescopic Ceiling Mount (32"-70") - AS94601L


• Tilting range of -25° to 0°
• Full swivel range of 360°
• Level adjustment of -3° to +3°
• Suitable for most 32"-70” screens
• Maximum VESA pattern: 600x400mm
• Maximum weight capacity: 50kg/110lbs
• Total height range: 1278-1778mm
Mount Type Tilting Telescopic Ceiling Mount
Mounting Pattern Universal
Material Steel
Material Finish Powder Coated
Recommended Screen Size 32"-70"
Weight Capacity 50kg/110lbs
Load Tested 3 times weight capacity approved
Maximum Hole Pattern 605x405mm
Maximum VESA Pattern 600x400
Compatible VESA Patterns 200x200, 400x200, 300x300, 400x400, 600x400
Tilt -20° to +5°
Swivel 360°
Level Adjustment -3° to +3°
Rotation
Profile 1060-1560mm
Column Rotation -90°, -60° to +60°. +90°
